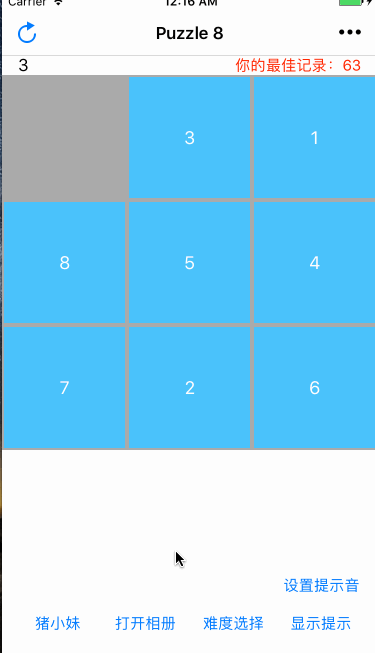

效果图

一、准备工作

先了解一个定义和定理

定义：在一个1,2,...,n的排列中，如果一对数的前后位置与大小顺序相反，即前面的数大于后面的数，那么它们就称为一个逆序。一个排列中逆序的总数就称为这个排列的逆序数。逆序数为偶数的排列称为偶排列；逆序数为奇数的排列称为奇排列。如2431中，21，43，41，31是逆序，逆序数是4，为偶排列。——这是北大《高等代数》上的定义。

定理：交换一个排列中的两个数，则排列的奇偶性发生改变。

二、实现过程

以3*3拼图为例进行分析

1、随机打乱拼图

1）初始化从0-8的数组initializeNums

NSMutableArray *initializeNums = [NSMutableArray array];//初始化0-n数字

for (int i = 0; i < _puzzleCount; i++) {

[initializeNums addObject:@(i)];

}

2）从initializeNums随机抽取数字add到数组randomNums，得到随机数组

NSMutableArray *randomNums = [NSMutableArray array];//随机数组

for (int i = 0; i < _puzzleCount; i++) {

int randomNum = arc4random() % initializeNums.count;

[randomNums addObject:initializeNums[randomNum]];

[initializeNums removeObjectAtIndex:randomNum];

}

3）判断拼图是否可还原

① 图1，通过移动要还原到的拼图状态

② 图2，随机打乱的拼图状态

③ 图3，将图2中的空白块移动到拼图右下角的拼图状态，用来计算打乱的拼图是否可以还原

④ 空白块处相当于数字8

⑤ 我们的目的是把打乱拼图如图2通过移动（空白块与相邻数字块位置交换）还原到图1状态

⑥ 不是每个随机打乱的拼图都能还原到图1状态（根据定义和定理有50%概率随机打乱的拼图不能还原）

⑦ 根据定义和定理，图1的逆序数为0，为偶排列。所以只有图3也为偶排列，图2才有可能还原到图1状态

图1

图2

如何计算图3的逆序数

① 先计算图2的逆序数

② 再计算图2到图3变换步数

③ 将两者相加即得图3逆序数

图3

判断图2是否可还原代码：

//判断是否可还原拼图

inverCount = 0;

int curNum = 0;

int nextNum = 0;

for (int i = 0; i < _puzzleCount; i++) {

curNum = [randomNums[i] intValue];

if (curNum == _puzzleCount - 1) {

inverCount += _difficulty - 1 - (i / _difficulty);

inverCount += _difficulty - 1 - (i % _difficulty);

}

for (int j = i + 1; j < _puzzleCount; j++) {

nextNum = [randomNums[j] intValue];

if (curNum > nextNum) {

inverCount++;

}

}

}

if (!(inverCount % 2)) {//对2求余，余0，逆序数为偶数，即偶排列；否则，为奇排列

return randomNums;

}

获得随机可还原的数组randomNums：

- (NSMutableArray *)getNewAvailableRandomNums {

//随机数字

int inverCount = 0;

while (1) {

NSMutableArray *initializeNums = [NSMutableArray array];//初始化0-n数字

for (int i = 0; i < _puzzleCount; i++) {

[initializeNums addObject:@(i)];

}

NSMutableArray *randomNums = [NSMutableArray array];//随机数组

for (int i = 0; i < _puzzleCount; i++) {

int randomNum = arc4random() % initializeNums.count;

[randomNums addObject:initializeNums[randomNum]];

[initializeNums removeObjectAtIndex:randomNum];

}

//判断是否可还原拼图

inverCount = 0;

int curNum = 0;

int nextNum = 0;

for (int i = 0; i < _puzzleCount; i++) {

curNum = [randomNums[i] intValue];

if (curNum == _puzzleCount - 1) {

inverCount += _difficulty - 1 - (i / _difficulty);

inverCount += _difficulty - 1 - (i % _difficulty);

}

for (int j = i + 1; j < _puzzleCount; j++) {

nextNum = [randomNums[j] intValue];

if (curNum > nextNum) {

inverCount++;

}

}

}

if (!(inverCount % 2)) {//对2求余，余0，逆序数为偶数，即偶排列；否则，为奇排列

return randomNums;

}

}

}

2、初始化拼图UI （九宫格）

代码：

- (void)customUI {

CGFloat puzzleBgViewX = 0;

CGFloat puzzleBgViewY = 64 + 20;

CGFloat puzzleBgViewW = [UIScreen mainScreen].bounds.size.width;

CGFloat puzzleBgViewH = puzzleBgViewW;

_puzzleBgView = [[UIView alloc] initWithFrame:CGRectMake(puzzleBgViewX, puzzleBgViewY, puzzleBgViewW, puzzleBgViewH)];

_puzzleBgView.backgroundColor = [UIColor lightGrayColor];

[self.view addSubview:_puzzleBgView];

CGFloat puzzleBtnX = 0;

CGFloat puzzleBtnY = 0;

CGFloat puzzleBtnW = puzzleBgViewW / _difficulty - kPuzzleBtnGap * 2;

CGFloat puzzleBtnH = puzzleBtnW;

for (int i = 0; i < _puzzleCount; i++) {

puzzleBtnX = i % _difficulty * (puzzleBtnW + kPuzzleBtnGap * 2) + kPuzzleBtnGap;

puzzleBtnY = i / _difficulty * (puzzleBtnH + kPuzzleBtnGap * 2) + kPuzzleBtnGap;

UIButton *puzzleBtn = [UIButton buttonWithType:UIButtonTypeCustom];

puzzleBtn.frame = CGRectMake(puzzleBtnX, puzzleBtnY, puzzleBtnW, puzzleBtnH);

puzzleBtn.tag = i;

puzzleBtn.clipsToBounds = YES;

[_puzzleBgView addSubview:puzzleBtn];

int puzzleValue = [self.randomNums[i] intValue];

if (puzzleValue == _puzzleCount - 1) {

puzzleBtn.backgroundColor = [UIColor clearColor];

_maxPuzzleBtn = puzzleBtn;

} else {

[puzzleBtn setTitle:[NSString stringWithFormat:@"%d", puzzleValue + 1] forState:UIControlStateNormal];

puzzleBtn.backgroundColor = [UIColor colorWithRed:0x4A / 255.0 green:0xC2 / 255.0 blue:0xFB / 255.0 alpha:1];

[puzzleBtn addTarget:self action:@selector(puzzleBtnAction:) forControlEvents:UIControlEventTouchUpInside];

}

}

}

3、滑块移动逻辑

点击空白块周围数字块，数字块移到空白块区域（其实就是空白块和数字块交换）

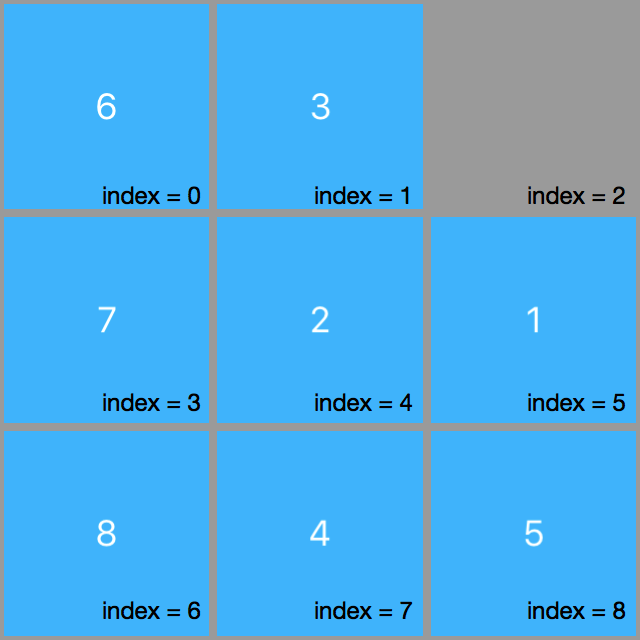

图4

① index：数字块对应位置如图4

② _difficulty : 拼图列数

③ 点击数字块依次判断其上下左右是否有空白块

④ 找到空白块，将点击数字块与空白块位置交换，实现数字块移动效果

以数字块3（index = 4）为例分析

上：upIndex = index - _difficulty 判断是否在九宫格里&&其位置对应的值是否是8，即空白块。

upIndex >= 0 && [self.randomNums[upIndex] intValue] == _puzzleCount - 1

下：downIndex = index + _difficulty 判断是否在九宫格里&&其位置对应的值是否是8，即空白块。

if (downIndex <= _puzzleCount - 1 && [self.randomNums[downIndex] intValue] == _puzzleCount - 1

左：leftIndex = index - 1 判断是否在九宫格里&&其位置对应的值是否是8，即空白块

index % _difficulty > 0 && [self.randomNums[leftIndex] intValue] == _puzzleCount - 1

右：rightIndex = index + 1 判断是否在九宫格里&&其位置对应的值是否是8，即空白块

index % _difficulty < _difficulty - 1 && [self.randomNums[rightIndex] intValue] == _puzzleCount - 1

代码：

- (void)puzzleBtnAction:(UIButton *)puzzleBtn {

NSInteger index = puzzleBtn.tag;

//上

NSInteger upIndex = index - _difficulty;

if (upIndex >= 0 && [self.randomNums[upIndex] intValue] == _puzzleCount - 1) {

CGPoint maxPuzzleBtnCenter = _maxPuzzleBtn.center;

CGPoint puzzleBtnCenter = puzzleBtn.center;

_maxPuzzleBtn.tag = index;

puzzleBtn.tag = upIndex;

self.randomNums[upIndex] = @([self.randomNums[index] intValue]);

self.randomNums[index] = @(_puzzleCount - 1);

[UIView animateWithDuration:0.35 animations:^{

puzzleBtn.center = maxPuzzleBtnCenter;

_maxPuzzleBtn.center = puzzleBtnCenter;

}];

[self isWin];

return;

}

//下

NSInteger downIndex = index + _difficulty;

if (downIndex <= _puzzleCount - 1 && [self.randomNums[downIndex] intValue] == _puzzleCount - 1) {

CGPoint maxPuzzleBtnCenter = _maxPuzzleBtn.center;

CGPoint puzzleBtnCenter = puzzleBtn.center;

_maxPuzzleBtn.tag = index;

puzzleBtn.tag = downIndex;

self.randomNums[downIndex] = @([self.randomNums[index] intValue]);

self.randomNums[index] = @(_puzzleCount - 1);

[UIView animateWithDuration:0.35 animations:^{

puzzleBtn.center = maxPuzzleBtnCenter;

_maxPuzzleBtn.center = puzzleBtnCenter;

}];

[self isWin];

return;

}

//左

NSInteger leftIndex = index - 1;

if (index % _difficulty > 0 && [self.randomNums[leftIndex] intValue] == _puzzleCount - 1) {

CGPoint maxPuzzleBtnCenter = _maxPuzzleBtn.center;

CGPoint puzzleBtnCenter = puzzleBtn.center;

_maxPuzzleBtn.tag = index;

puzzleBtn.tag = leftIndex;

self.randomNums[leftIndex] = @([self.randomNums[index] intValue]);

self.randomNums[index] = @(_puzzleCount - 1);

[UIView animateWithDuration:0.35 animations:^{

puzzleBtn.center = maxPuzzleBtnCenter;

_maxPuzzleBtn.center = puzzleBtnCenter;

}];

[self isWin];

return;

}

//右

NSInteger rightIndex = index + 1;

if (index % _difficulty < _difficulty - 1 && [self.randomNums[rightIndex] intValue] == _puzzleCount - 1) {

CGPoint maxPuzzleBtnCenter = _maxPuzzleBtn.center;

CGPoint puzzleBtnCenter = puzzleBtn.center;

_maxPuzzleBtn.tag = index;

puzzleBtn.tag = rightIndex;

self.randomNums[rightIndex] = @([self.randomNums[index] intValue]);

self.randomNums[index] = @(_puzzleCount - 1);

[UIView animateWithDuration:0.35 animations:^{

puzzleBtn.center = maxPuzzleBtnCenter;

_maxPuzzleBtn.center = puzzleBtnCenter;

}];

[self isWin];

return;

}

}

4、另一种打乱拼图的方法

思路：将图1经过有限次数随机移动达到打乱拼图的目的，这样打乱的拼图肯定是可还原的。

代码：

- (NSMutableArray *)getNewAvailableRandomNums2 {

NSMutableArray *randomNums = [NSMutableArray array];//随机数组 - 初始化0-n数字

for (int i = 0; i < _puzzleCount; i++) {

[randomNums addObject:@(i)];

}

int randCount = _puzzleCount * _puzzleCount;

int randDirection = 0; //0 上 1 下 2 左 3 右

BOOL aliableDirection = NO;

int blankIndex = 8;

int index = 0;

while (randCount--) {

aliableDirection = NO;

randDirection = arc4random() % 4;

while (1) {

switch (randDirection) {

case 0:

if (blankIndex / _difficulty > 0) {

index = blankIndex - _difficulty;

aliableDirection = YES;

}

break;

case 1:

if (blankIndex / _difficulty < _difficulty - 1) {

index = blankIndex + _difficulty;

aliableDirection = YES;

}

break;

case 2:

if (blankIndex % _difficulty > 0) {

index = blankIndex - 1;

aliableDirection = YES;

}

break;

case 3:

if (blankIndex % _difficulty < _difficulty - 1) {

index = blankIndex + 1;

aliableDirection = YES;

}

break;

default:

break;

}

if (aliableDirection == YES) {

break;

}

randDirection = (randDirection + 1) % 4;

}

randomNums[blankIndex] = @([randomNums[index] intValue]);

randomNums[index] = @(8);

blankIndex = index;

}

return randomNums;

}
